Concrete Cancer Repair for Industrial and Commercial Facilities in Melbourne: What It Is and How FMS Fixes It

If you have noticed rust stains appearing through the surface of your concrete floor, walls, or columns, or sections of concrete that are cracking, bubbling, and breaking away, you are looking at concrete cancer. It is one of the most alarming things a facility manager or property manager can discover in a building. Left untreated, it spreads, gets worse, and the longer it is ignored the more it costs to fix.

The good news is that surface concrete cancer, the kind that affects the outer layer of concrete without compromising the structural integrity of the building, is a well-understood problem with a clear and effective repair process. It is also one of the fastest turnaround repair jobs FMS carries out across Melbourne warehouses, industrial facilities, and commercial buildings.

This article explains what surface concrete cancer is, why it happens, what the repair process involves, and why acting quickly makes a significant difference to both the cost and the outcome.

What Is Concrete Cancer?

Concrete cancer is the common term for a deterioration process that begins when moisture penetrates concrete and reaches the steel reinforcing bars embedded within it. When that reinforcing steel corrodes, it expands up to seven times its original volume and that expansion pushes outward through the concrete above it.

The result is the characteristic symptoms most facility managers recognise: rust staining bleeding through the concrete surface, cracking that follows the line of the reinforcing steel beneath, spalling where sections of concrete break away from the surface, and in more advanced cases large sections of concrete that have separated entirely and expose the rusted steel beneath.

Surface concrete cancer, the scope that FMS addresses, affects the outer layer of the concrete and the reinforcing steel immediately beneath the surface. The deterioration is real, it is active, and it needs to be treated. It does not affect the load-bearing structural capacity of the building. This distinction matters because it defines the repair approach and separates surface remediation work from structural engineering interventions that are a different scope entirely.

Why Concrete Cancer Happens in Industrial and Commercial Facilities

Concrete cancer does not appear overnight. It develops over time as the result of conditions that allow moisture to penetrate the concrete cover over the reinforcing steel. Understanding why it happens in industrial and warehouse environments helps facility managers identify the risk factors present in their own buildings.

Carbonation of the Concrete

Over time, concrete naturally undergoes a process called carbonation where carbon dioxide from the atmosphere reacts with compounds in the concrete and reduces its alkalinity. This reduction in alkalinity removes the protective environment that keeps reinforcing steel from corroding. Once carbonation reaches the depth of the reinforcing steel, corrosion begins.

Carbonation is a slow process in high-quality, well-specified concrete. In older concrete with a high water-to-cement ratio, or concrete placed under poor curing conditions, carbonation proceeds faster and reaches the steel sooner.

Chloride Penetration

In facilities where cleaning agents or other chloride-containing substances come into regular contact with concrete surfaces, chloride ions penetrate the concrete and initiate corrosion of the reinforcing steel independently of the carbonation process. Chloride-initiated corrosion tends to be more aggressive than carbonation-driven corrosion and can produce concrete cancer symptoms faster once it begins.

Poor Concrete Cover Over Reinforcing Steel

The depth of concrete between the surface and the reinforcing steel is a critical factor in how quickly moisture can reach and initiate corrosion of that steel. Where the concrete cover is insufficient, either through poor original construction practice or through surface erosion over time, moisture reaches the reinforcing steel faster and concrete cancer develops sooner.

Many older industrial buildings and warehouses in Melbourne were constructed at a time when concrete cover specifications were less stringent than current standards. These buildings carry an elevated concrete cancer risk relative to more recently constructed facilities.

Cracking and Surface Damage

Cracks in a concrete surface are direct pathways for moisture to reach the reinforcing steel, bypassing the protective function of the concrete cover entirely. A concrete surface that has developed cracking from thermal movement, overloading, or physical impact carries elevated concrete cancer risk compared to an intact surface.

This is one of the reasons concrete crack repair is not just a surface maintenance issue. Unaddressed cracks accelerate the moisture ingress that leads to reinforcing steel corrosion and the concrete cancer that follows.

How to Identify Surface Concrete Cancer in Your Facility

The symptoms of concrete cancer are distinctive once you know what to look for. In a warehouse, industrial facility, or commercial building, the areas most commonly affected include:

Concrete floors near loading docks and external entry points where moisture ingress from weather and vehicle movement is consistent and the concrete surface has been subject to physical wear over time.

Concrete columns and walls in car parks and lower levels where moisture exposure is high and carbonation has had time to progress through the concrete cover.

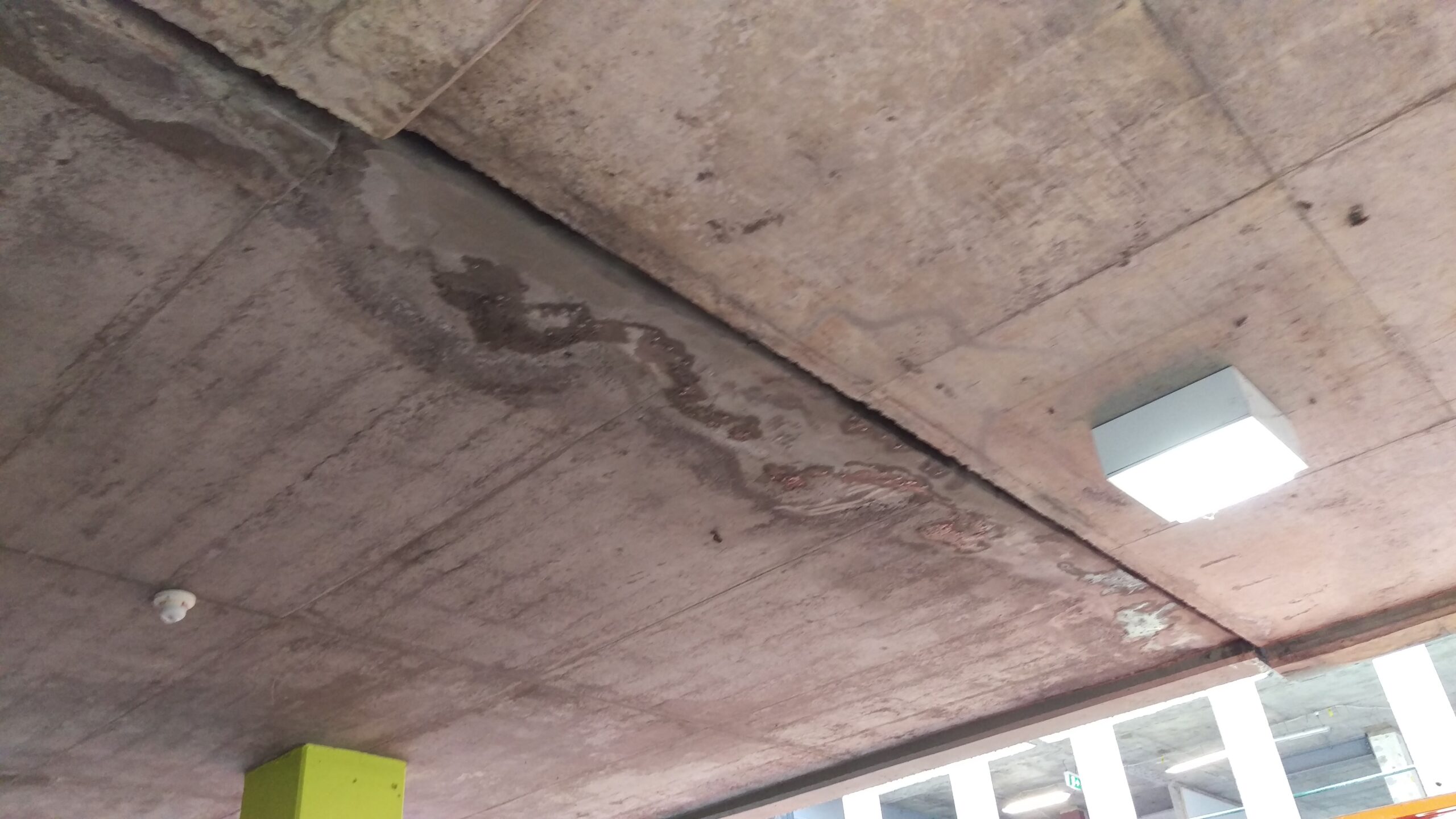

Suspended concrete slabs and soffits where water has found its way through the slab from above and has been sitting in contact with the reinforcing steel for an extended period.

External concrete aprons, hardstands, and driveways where weather exposure is continuous and the concrete has been subject to the full range of Melbourne’s temperature and moisture variation over its service life.

The specific symptoms to look for include rust-coloured staining on the concrete surface, typically following a linear pattern that reflects the position of the reinforcing steel beneath. Cracking that follows a similar linear pattern may show slight displacement or lifting at the crack edges. Spalling is where sections of the concrete surface have broken away to reveal deteriorated concrete and in some cases the surface of the reinforcing steel beneath. Hollow-sounding sections when the surface is tapped indicate that the bond between the outer concrete layer and the material beneath has been broken by the expansion of corroding steel.

Any of these symptoms warrants prompt assessment. Surface concrete cancer does not stabilise on its own. The corrosion process continues as long as moisture can reach the steel, and the expansion of corroding steel continues to push outward through the concrete above it.

The Surface Concrete Cancer Repair Process

Surface concrete cancer repair carried out by FMS follows a defined process that removes the affected material, treats the exposed reinforcing steel, and reinstates the concrete surface with a repair system that restores the area to a sound, protected condition.

Break Out and Remove Affected Concrete

The deteriorated concrete is broken out back to sound material. This means removing not just the visibly spalled sections but all concrete in the affected area that has lost its bond or shows signs of deterioration. Stopping the break-out at visibly damaged material and leaving adjacent concrete that has begun to deteriorate produces a repair boundary that fails prematurely as the surrounding deterioration continues.

The break-out process also establishes the full extent of the affected area. What appears on the surface as a contained patch of spalling frequently reveals a larger affected zone once the loose surface material is removed and the concrete beneath is properly assessed.

Clean and Treat Exposed Reinforcing Steel

Once the affected concrete is removed and the reinforcing steel is exposed, the steel is cleaned to remove rust and corrosion products and treated with a rust inhibitor that neutralises active corrosion and provides a protective barrier against future moisture contact.

This step is critical to the longevity of the repair. A repair that reinstates concrete over untreated corroding steel will fail again as the corrosion continues beneath the new surface. Treating the steel properly before reinstatement stops the corrosion process and gives the repair its best chance of lasting.

Apply Bonding Agent to the Repair Area

A bonding agent is applied to the prepared concrete surface before the repair mortar is placed. This bonding agent creates the chemical adhesion between the existing concrete substrate and the repair material, ensuring the repair stays bonded to the surrounding concrete over time.

Reinstate With Repair Mortar

A polymer-modified repair mortar is applied to reinstate the broken-out area to the original concrete profile. The repair mortar is selected for compatibility with the existing concrete, appropriate compressive strength for the application, and resistance to the environmental conditions the repaired area will face in service.

The repair is finished flush with the surrounding concrete surface and allowed to cure before any protective coating or surface treatment is applied.

Apply Protective Coating

Once the repair mortar has cured, a protective coating is applied over the repair and the surrounding concrete surface to seal the area against future moisture ingress. This protective coating is the barrier that prevents the environmental conditions that initiated the original concrete cancer from reaching the repaired area and restarting the process.

Concrete cancer repair and protective coating application for Melbourne industrial and commercial facilities carried out correctly addresses both the active deterioration and the conditions that drove it, producing a repair that lasts rather than one that delays the same problem recurring.

Why Acting Quickly Matters

Surface concrete cancer is not a condition that stabilises and waits for a convenient time to be addressed. The corrosion process continues as long as moisture can reach the reinforcing steel. Each month of continued corrosion means more steel has deteriorated, more concrete has been pushed away from the surface, and the break-out and repair scope is larger than it would have been the month before.

The cost of concrete cancer repair scales directly with the extent of the affected area. A localised repair of a contained affected zone is a fast, cost-effective job that causes minimal disruption to the facility. The same underlying problem left for another six to twelve months produces a larger affected area, a bigger break-out, more steel treatment, and more reinstatement, all of which cost more and take longer.

For facility managers who have identified concrete cancer symptoms in their building, prompt action is not just the right maintenance decision. It is the most cost-effective one.

What to Expect From an FMS Concrete Cancer Repair

FMS carries out surface concrete cancer repair for warehouses, industrial facilities, car parks, and commercial buildings across Melbourne and Victoria. The repair process is designed to be completed with minimal disruption to the facility’s operations. In most cases, affected areas can be isolated and repaired without requiring full facility closure, and the fast-setting repair mortars used in our repair process allow treated areas to return to service quickly.

Our technicians hold the MSF30822 Certificate III in Flooring Technology and bring formal substrate assessment competency to every concrete cancer repair project. Every repair starts with a proper assessment of the affected area to establish the full extent of deterioration before any break-out begins.

Contact Floor Maintenance Solutions for a free site assessment of your Melbourne facility. If you have seen rust staining, spalling, or cracking in your concrete floor, walls, or columns, do not wait. The sooner the repair is carried out, the smaller the job and the lower the cost.

Find out more about our concrete maintenance and repair services for Melbourne industrial and commercial facilities.
